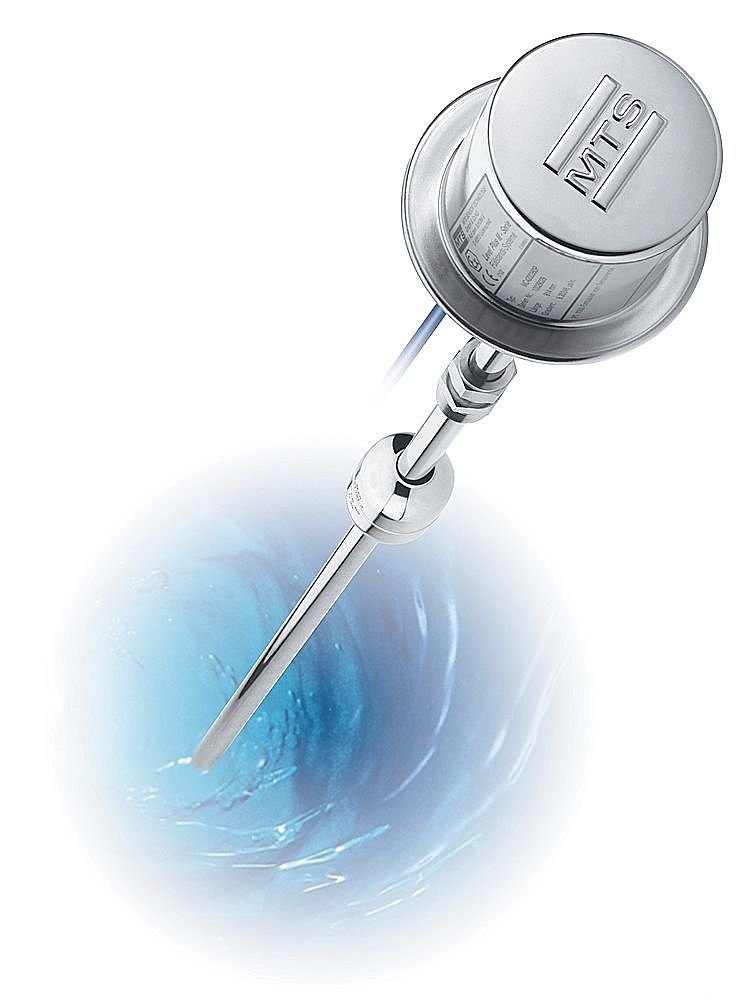

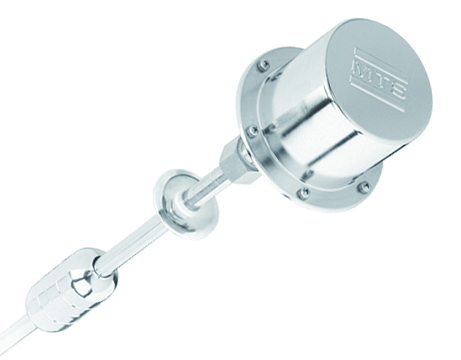

MTS Temposonics® MC420 liquid level sensors
Level Plus liquid level transmitters utilize the inherent advantages of magnetostrictive technology to provide the product level, interface level, and temperature measurement of a tank from one process opening. Accurately measuring multiple process variables from one opening lowers the installed costs of adding feedback to a storage tank or process vessel.
MTS Liquid Level Sensors
4 to 20 mA Output with HART®
Single Channel Output
Level Measurements
- Product
- Interface
No Scheduled Maintenance or Recalibration
High Accuracy and Repeatability
Intrinsically Safe (I.S.)
Kontakt Hydex vedrørende MTS Temposonics® MC420 liquid level sensors
Type
Magnetostrictive position sensor
Output
4 to 20 mA / HART®
Design
Rigid
Parameter
Level or Interface
Measuring range
457-5486 mm
Linearity
0,02 % F.S.
Approval
PTB/ATEX/CSA
FM
For mer informasjon
Klikk her
---
Datablad
---
Produktoversikt
Kontakt Hydex vedrørende MTS Temposonics® MC420 liquid level sensors
